Home Lab

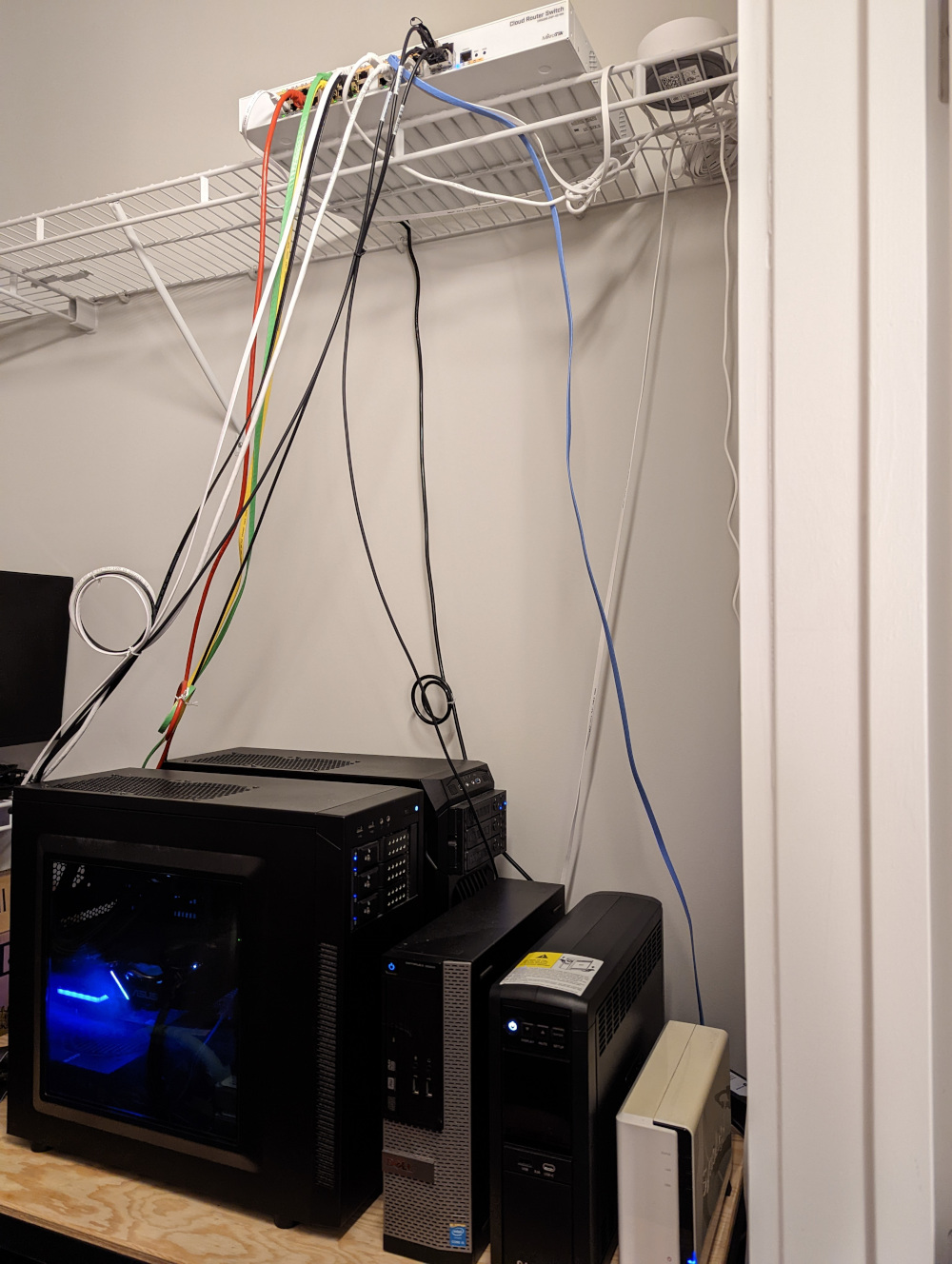

With two physical servers and other networking and storage devices, my home lab is the center point of home security, automation, internet management, media consumption, and many other utilities.

Hardware

Network Hardware

  • Firewall/Router [MikroTik Cloud Core Router CCR1009-7G-1C-1S+]
  • 24 Port Managed Switch [Ubiquiti UniFi Switch US-24-250W]
  • 8 Port PoE Managed Switch [Ubiquiti UniFi Switch US-8]
  • 2 x PoE Access Points [Ubiquiti UniFi AP UAP-AC-PRO-US]
  • 2 x 5 Port Switch [Netgear GS105NA]
  • Physical NAS [Synology DS713+] {8 Tb, BTRFS, RAID-0}
  • TV Tuner [HDHomeRun Prime]

Server Hardware: Bare metal Hypervisors running VMWare ESXi

  • Server 1

    • Motherboard: Supermicro X10SRI-F-O
    • CPU: Intel 8 Core Xeon E5-2620 v4 @ 2.40GHz
    • RAM: 32 GB DDR4
    • NIC: Intel Quad Server Adapter I340-T4
      • Two uplink ports aggregated with LACP/802.1AX
    • GPU: EVGA GeForce GTX 1070 Ti FTW2
    • NVMe: 1 TB Samsung 970 EVO Plus
    • SSD: 500 GB Samsung 850 PRO (Cache)
    • HDD:
      • 2 x 5 TB Seagate BarraCuda ST5000DM000
      • 2 x 10 TB Seagate BarraCuda Pro
      • 1 x 10 TB Seagate Exos Enterprise
    • PSU: Corsair 850 Watt 80+ Gold Modular
    • CPU Cooler: Corsair H100i v2 AIO Liquid CPU Cooler

  • Server 2

    • Motherboard: Supermicro X10SRI-F-O
    • CPU: Intel 8 Core Xeon E5-2630 v3 @ 2.40GHz
    • RAM: 48 GB DDR4
    • NIC: Intel Quad Server Adapter I340-T4
      • Two uplink ports aggregated with LACP/802.1AX
    • GPU: EVGA GeForce GTX 760
    • NVMe: 500 GB Samsung 970 EVO Plus
    • SSD: 250 GB Samsung 860 EVO (Cache)
    • HDD:
      • 2 x 10 TB Seagate Exos Enterprise
      • 1 x 10 TB Seagate BarraCuda Pro
    • PSU: EVGA 80+ White 500W
    • CPU Cooler: Corsair H100i v2 AIO Liquid CPU Cooler

Miscellaneous Hardware

  • UPS [CyberPower CP1500PFCLCD]

Software

Network Configuration

  • VLAN 0: VM communication and UniFi Management Network [10.25.7.0/24]
    • Assigned addresses
  • VLAN 10: Home Users WiFi and Wired Devices [10.12.28.0/24]
    • DHCP
  • VLAN 20: Guest WiFi [10.8.8.0/24]
    • Captive portal
    • Firewall-based client isolation
    • DHCP
    • Short leases

Server Configuration & Docker Applications

  • Server 1

    • Music VM [Alpine Linux]
      • Airsonic
      • Mopidy
      • Snapcast Snapserver
    • Webserver VM [Alpine Linux]
      • NGINX
      • Certbot
      • Fail2ban
    • Network Utilities VM [Alpine Linux]
      • OpenVPN
      • Unifi Controller
      • PiHole
    • Docker VM #2 [Alpine Linux]
      • FreshRSS
      • Syncthing
      • Pyload
      • Jupyter Datascience Notebook
      • Grocy
      • Transmission
      • Portainer
      • Jackett
      • Ubooquity
      • Calibre Web
    • Docker VM #3 [Alpine Linux]
      • Jitsi Stack
      • Nextcloud w/ MariaDB
      • Guacamole w/ MariaDB
    • Surveillance VM [Alpine Linux]
      • Shinobi CCTV
    • Storage VM [FreeNAS]
      • RAID-Z1: 10Tb Drives
      • RAID-Z0 Striped: 5Tb Drives
    • Personal Computer VM [Windows 10 Pro]

  • Server 2

    • Docker VM #1 [Alpine Linux]
      • Sonarr
      • Radarr
      • Lidarr
      • NZBGet
      • NZBHydra
      • Tautulli
      • PiHole
    • Plex VM [Alpine Linux]
      • Plex
    • Machine Learning VM [Ubuntu Server]
      • GPU Passthrough
      • TensorFlow Jupyter Notebook
      • WireGuard [Upcoming]
    • Storage VM [FreeNAS]
      • RAID-Z1: 10Tb Drives
    • Windows Server VM [Windows Server 2016]

Cron jobs on every VM rsync configurations to the redundant datastore on server 1’s storage server every night. Snapshots are made three times a week and replicated on server 2’s storage server (also redundant).
